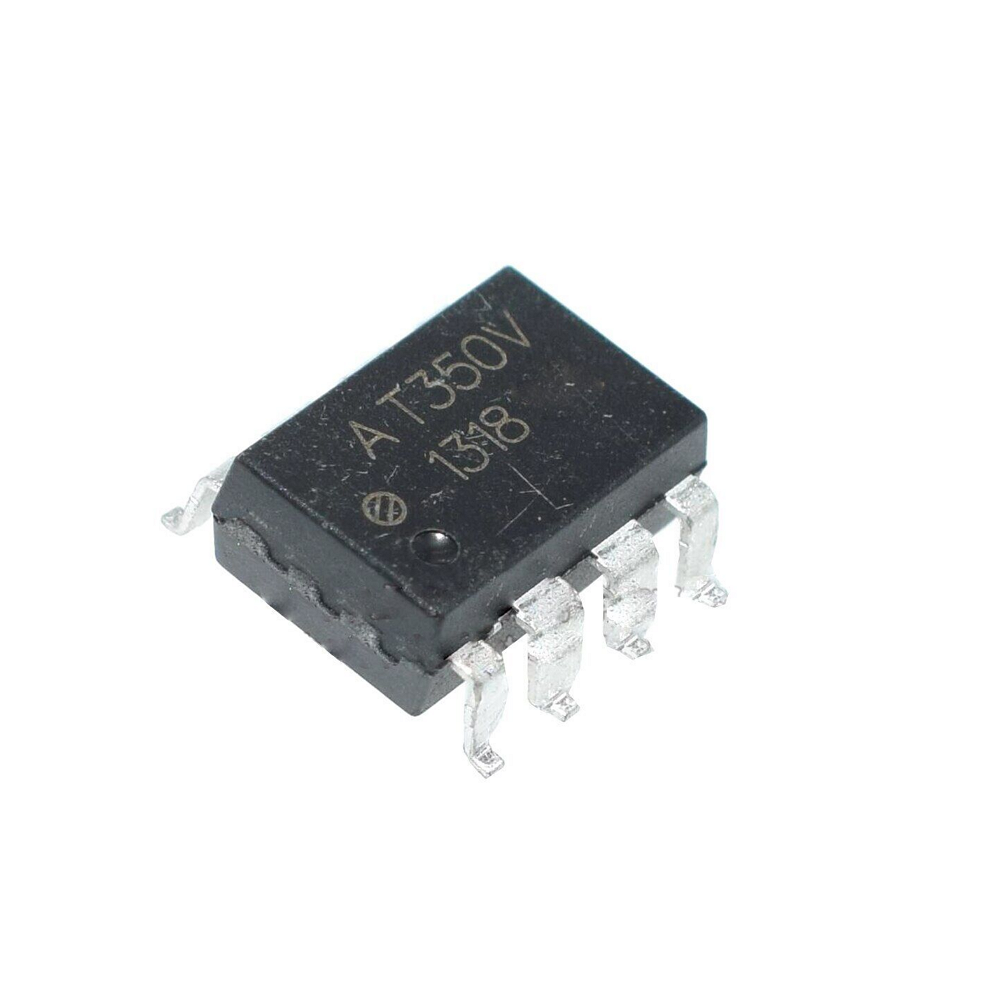

AT350-optocoupler

Features
• 2.5A Absolute Maximum Peak Output Current
• 15 kV/μs minimum Common Mode Rejection (CMR) at
VCM = 1500 V
• 1.5 V maximum low level output voltage (VOL)
• ICC = 4 mA maximum supply current
• Under Voltage Lock-Out protection (UVLO) with
hysteresis
• Wide operating VCC range: 15 to 30 Volts
• 500 ns maximum switching speeds
• Industrial temperature range: -40°C to 100°C
• Safety Approval
– UL Recognized 3750 Vrms for 1 min.
– CSA Approval
– IEC/EN/DIN EN 60747-5-2 Approved
VIORM = 630 Vpeak (Option 060)
Applications
• IGBT/MOSFET gate drive
• Inverter for Home Appliances
• Industrial Inverters
• Switching Power Supplies (SPS)

datasheet :at3150
